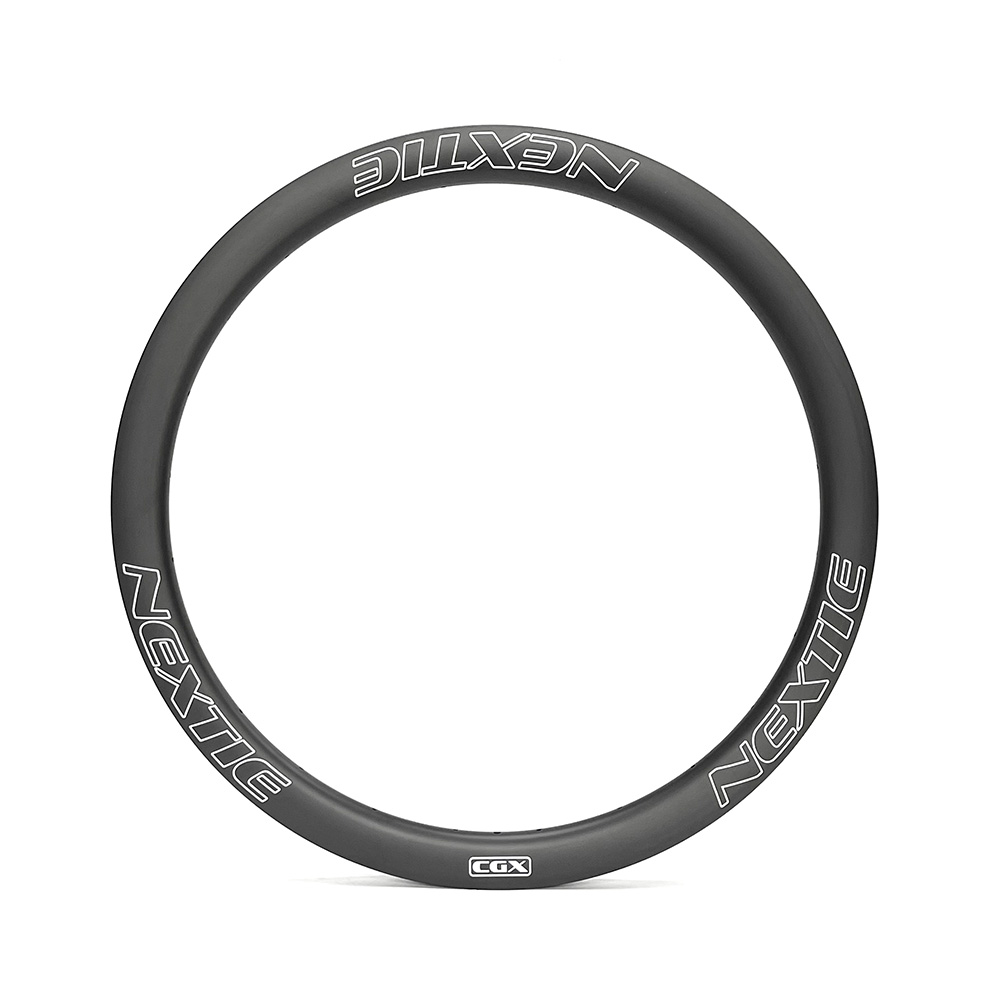

[GR 45-27] 650B / 27.5" Gravel Bicycle Carbon Fiber Rim Depth 45mm 435g
![[GR 45-27] 650B / 27.5" Gravel Bicycle Carbon Fiber Rim Depth 45mm 435g](https://www.nextie-oem.com/image/cache/catalog/2022-products/CGX/NXT45CGX-1000x1000.jpg "[GR 45-27] 650B / 27.5\" Gravel Bicycle Carbon Fiber Rim Depth 45mm 435g")
![[GR 45-27] 650B / 27.5" Gravel Bicycle Carbon Fiber Rim Depth 45mm 435g](https://www.nextie-oem.com/image/cache/catalog/gravel/NXT27GR45-1000x1000.jpg "[GR 45-27] 650B / 27.5\" Gravel Bicycle Carbon Fiber Rim Depth 45mm 435g")
Basic
- Code: NXT27GR45
- Rim Type: Clincher
- Materials: Toray T700 Carbon Fiber
- Warranty: 2 Years
Specification
- Size: 650B | 27.5"
- ERD (Effective Rim Diameter): 513mm

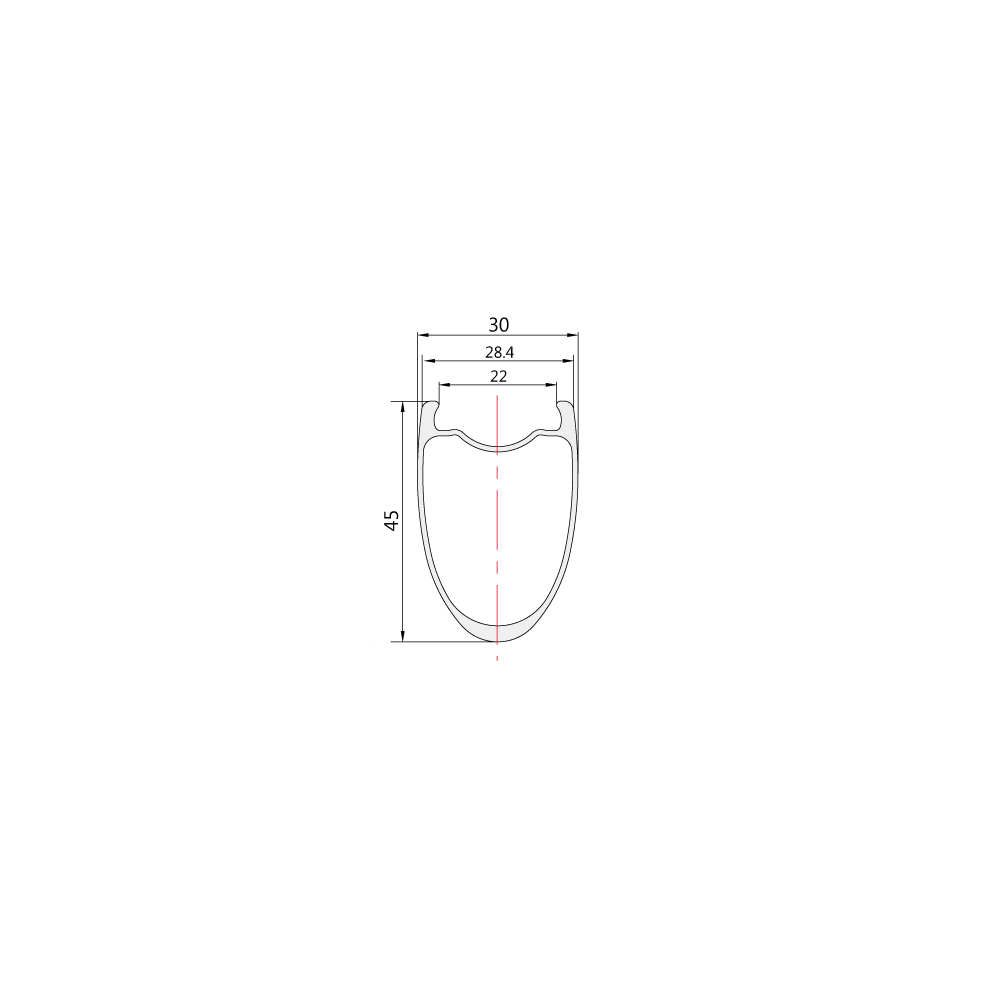

- External Width: 30mm
- Rim Height: 45mm
- Weight: 435g
- Valve Hole Diameter: 6.5mm
- Spoke Holes Diameter: 4.5mm
- Drillings: 16, 18, 20, 24, 28, 32, 36
- Assembly Hole Diameter: 7.5mm
Recommendation
- Spoke Tension: 80~130kgf
- Tire Size: 26mm~55mm
- Spoke Nipple Length: 14mm / 16mm
- Tire Pressure: 45 ～ 100psi
- Load Limit (One Wheel): 139Kg
Appearance
- Weave: UD / 3K / 12K
- Finish: Matte / Glossy
Application
- application: Road / Triathlon / TT / Cyclocross
