[Vista] Omega 29" Carbon Mountain Bicycle Cross Country Rim 36mm 270g

Basic

• Name: Omega 36E
• Code: NXT29VM36E
• Rim Type: Mountain Bike (Clincher, Hookless)
• Materials: Carbon Fiber (Mixed)
• Tubeless Compatible: Yes
• Release Time: November 2024
• Drillings: 24, 28, 32
• Edition: Vista Edition
• Warranty: 5 Years

Specification

• Size: 29"
• BSD (Bead Seated Diameter): 622mm
• ERD (Effective Rim Diameter): 604mm

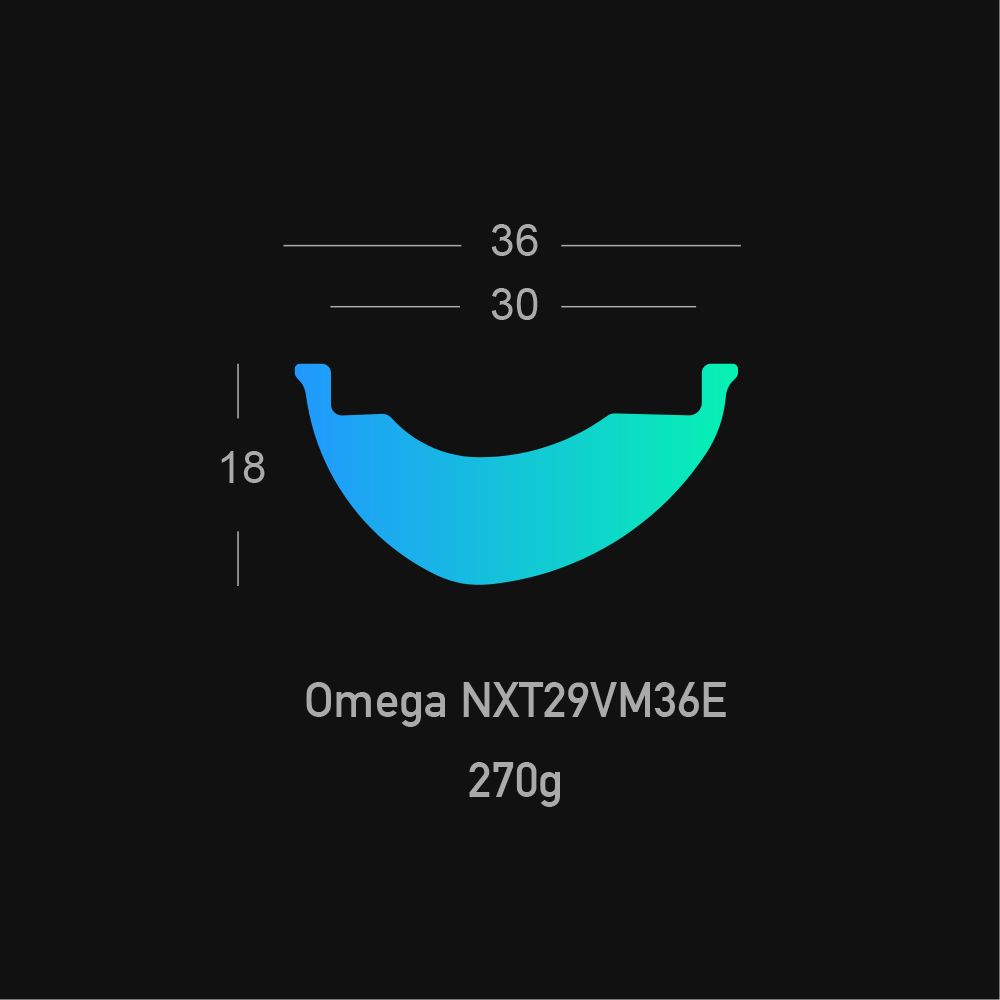

• External Width: 36mm
• Internal Width: 30mm
• Rim Height: 18mm
• Spoke Bed Offset: 3.0mm
• Weight: 270g
• Valve Hole Diameter: 6.5mm (Presta)
• Spoke Holes Diameter: 4.5mm
• Strength: 100J
• Assembly Hole Diameter: 7.5mm
• Rim Lip Thickness: 3.0mm

Recommendation

• Spoke Tension: 100 ~ 130kgf
• Tire Size: 2.0" ~ 2.75"
• Tire Pressure: 18 ~ 32 psi
• Max System Weight: 143Kg

Appearance

• Weave: UD
• Finish: Matte / Free Coating / Glossy

Application

• application: Cross Country (XCO, XCM, XCC), Marathon, Endurance Cross Country, Trail
